The Evergreen Barndominium Shop with Studio Loft
Barnhaus Steel Designs
Important: All building plans must be reviewed and approved by a licensed local engineer to ensure compliance with your area's building codes and regulations before construction begins.
The Ultimate Shop + Living Space 770 Sq Ft Studio Loft | 45' x 65' Shop | 5 Rollup Doors

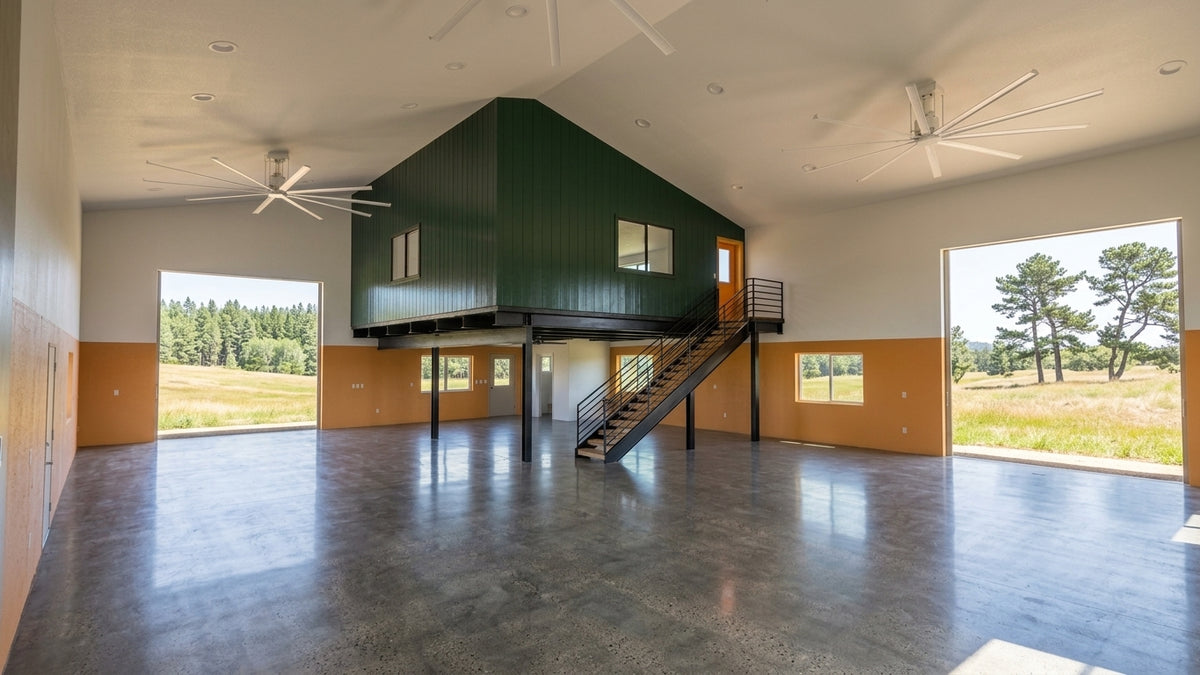

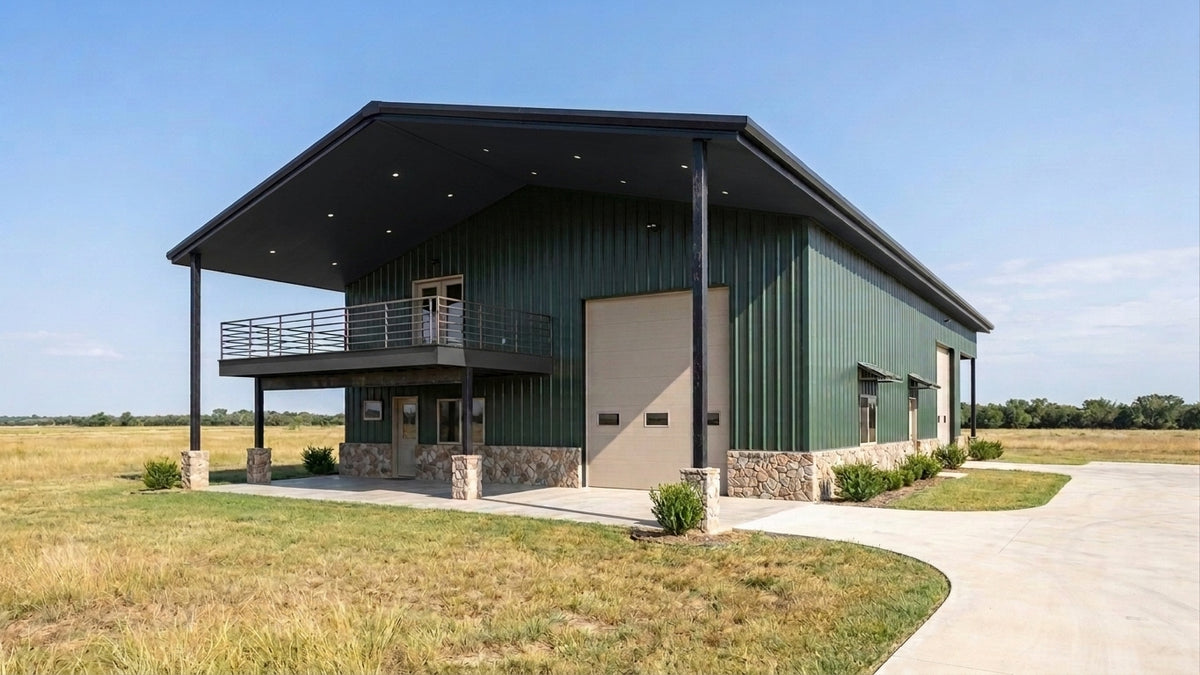

The Evergreen is an Apartment Shop plan built for serious work and comfortable living. With a 45 x 65 shop space and 770 SF studio apartment loft with balcony, this building is made for big vehicles, machinery, boats, or commercial use. It features 5 rollup garage doors, 2 patios, and a large open floor plan. Like all of our plans, it is framed with structural steel.
SELECT YOUR PLAN PACKAGE:
OPTION 1: THE PLANNING STUDY SET ($99) Best for: Visualizing the building, checking land feasibility, and preliminary HOA approval.
What You Get:
- Dimensioned Floor Plans (Room Sizes)
- 4 Exterior Elevation Views (Heights)
- 3D Dollhouse Visualization Sheets
Protection: Stamped "Not For Construction." Does not include technical data for permitting.
BUILDER'S BONUS: Includes a $100 Credit Voucher valid toward the full Construction Set.
OPTION 2: THE COMPLETE CONSTRUCTION SET ($750) Best for: Builders ready to break ground, pull permits, and hire trades.
What You Get: The full architectural license and comprehensive technical blueprint set.
License: Includes a license to construct ONE structure.

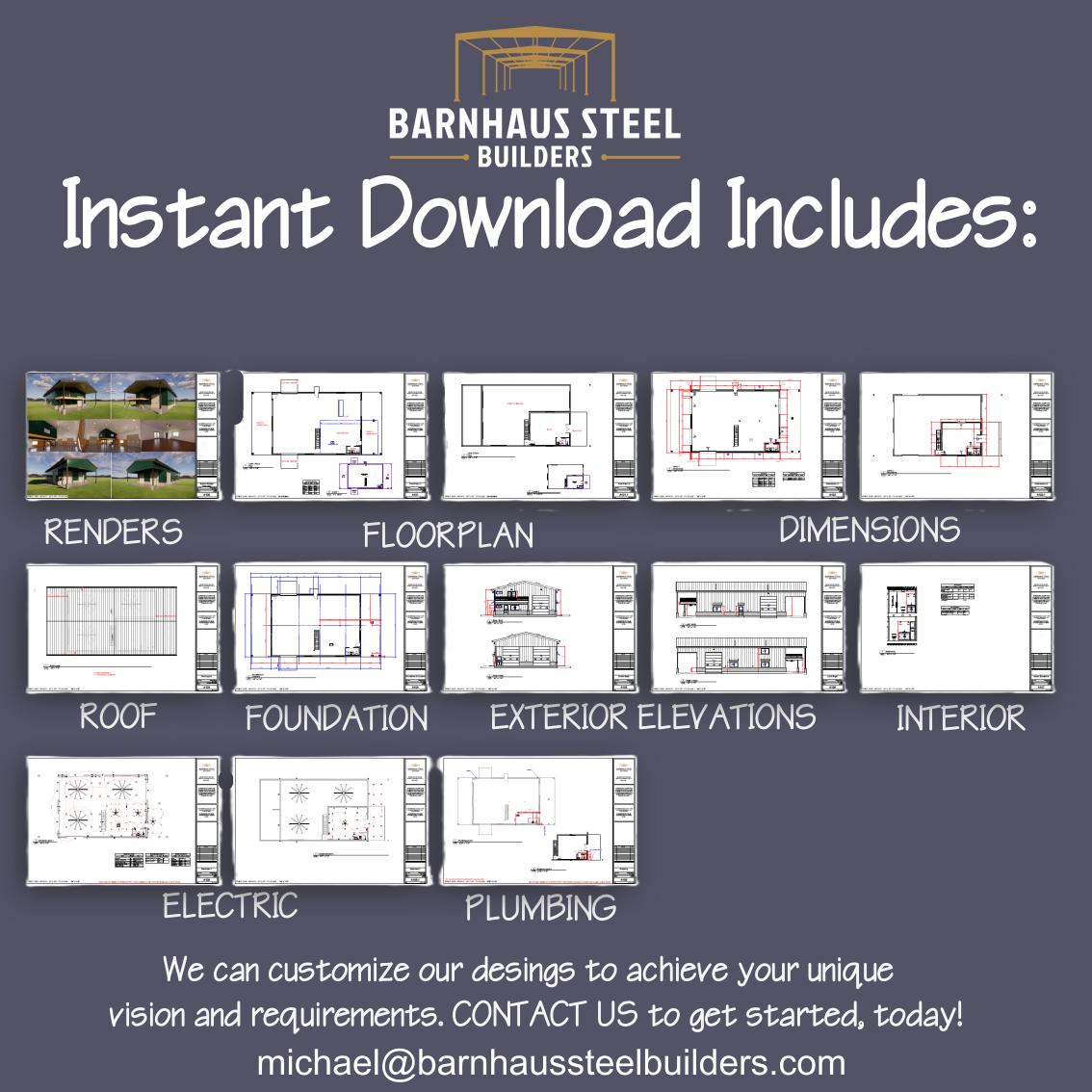

Complete Blueprint Package Includes:
- Cover Page with Stunning Renders

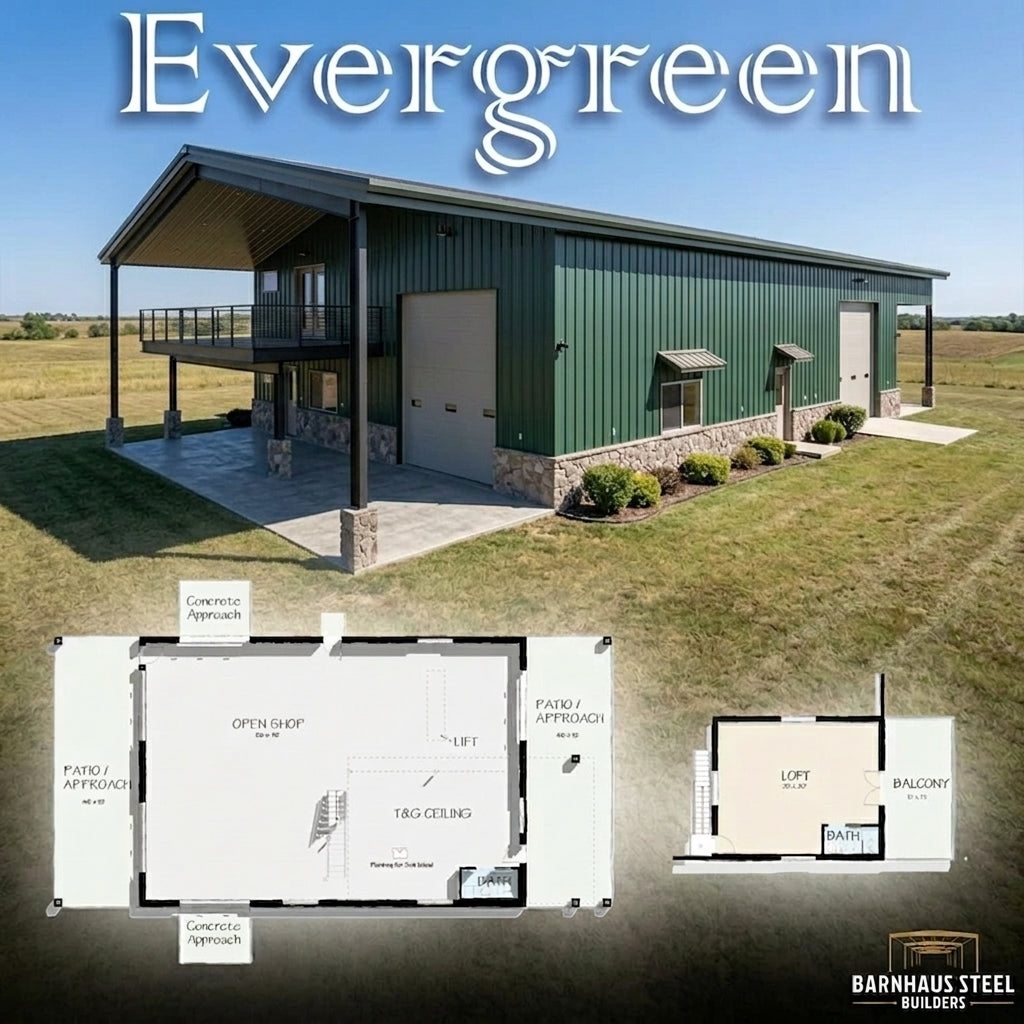

- Detailed Floor Plan
- Dimension Plan
- Elevations (all four sides)
- Roof Plan
- Interior Elevations
- Foundation Plan
- Electrical Plan
- Plumbing Plan

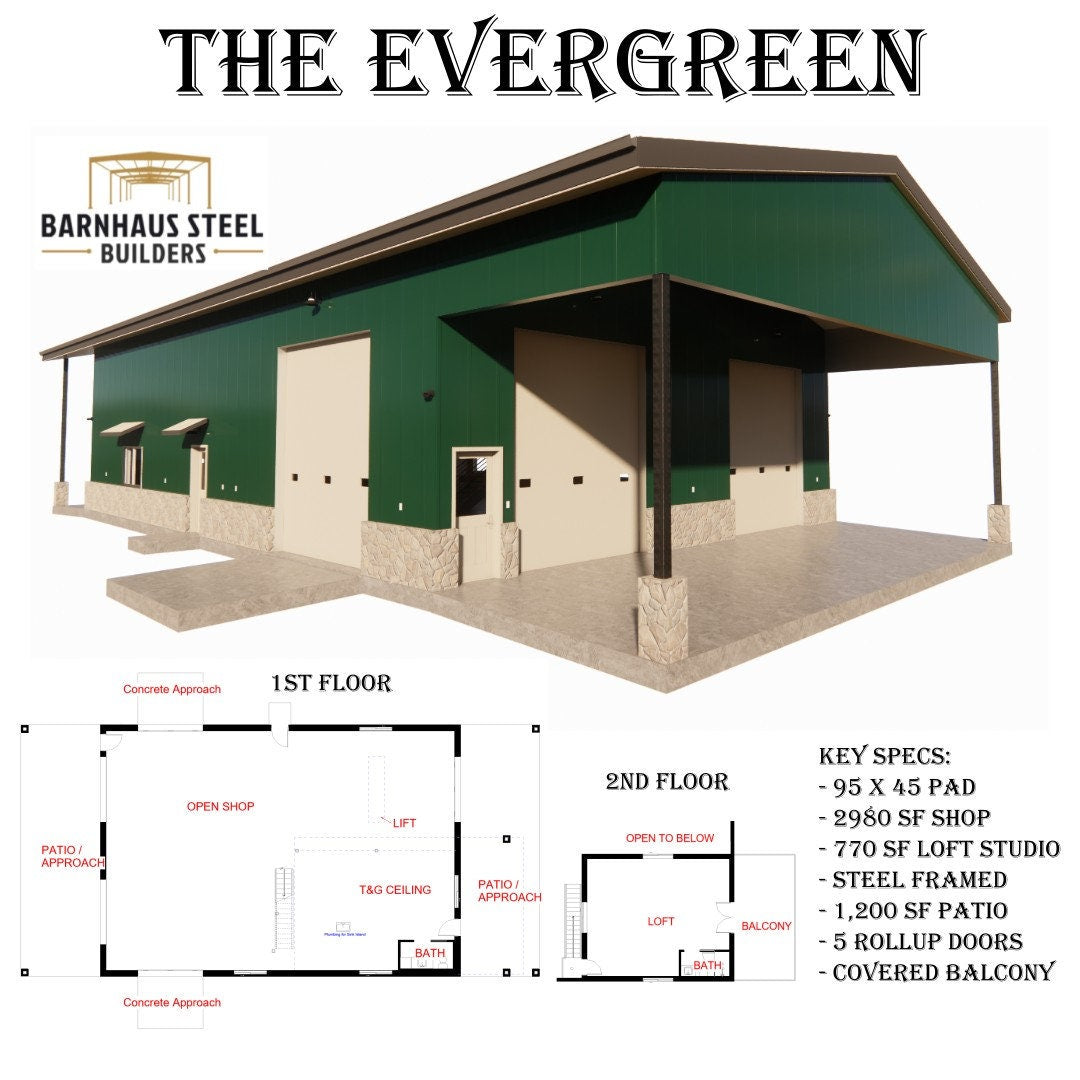

Key Specifications:

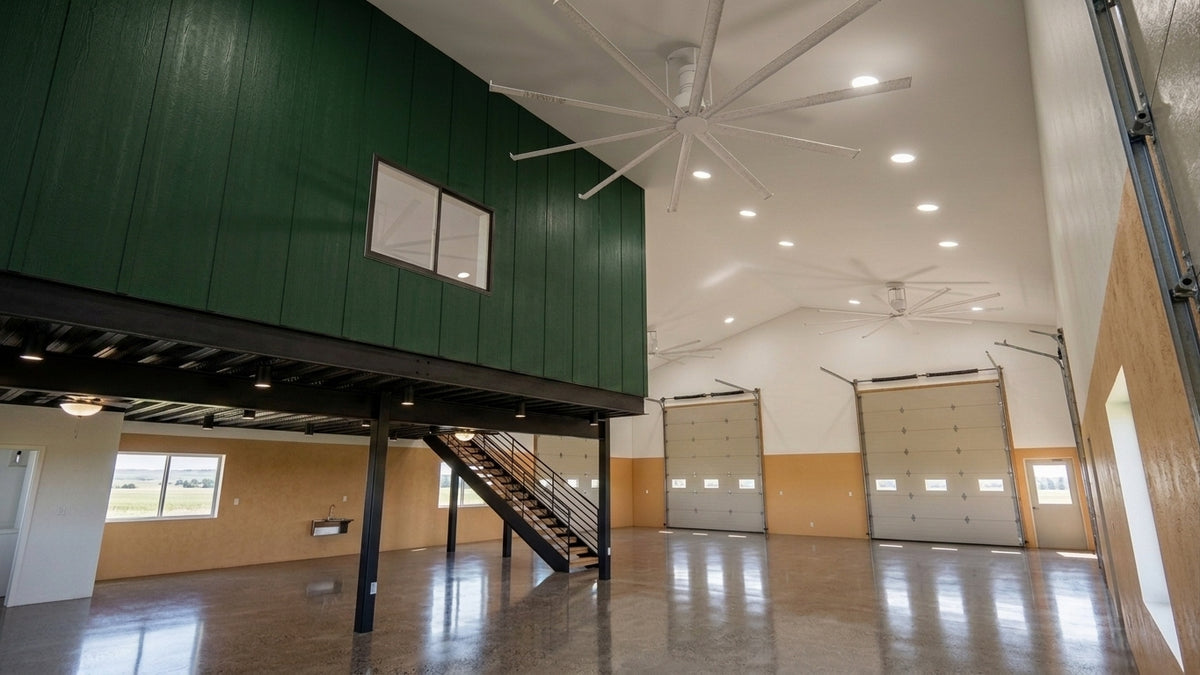

- Shop Space: 45' x 65' (2,925 Sq Ft)

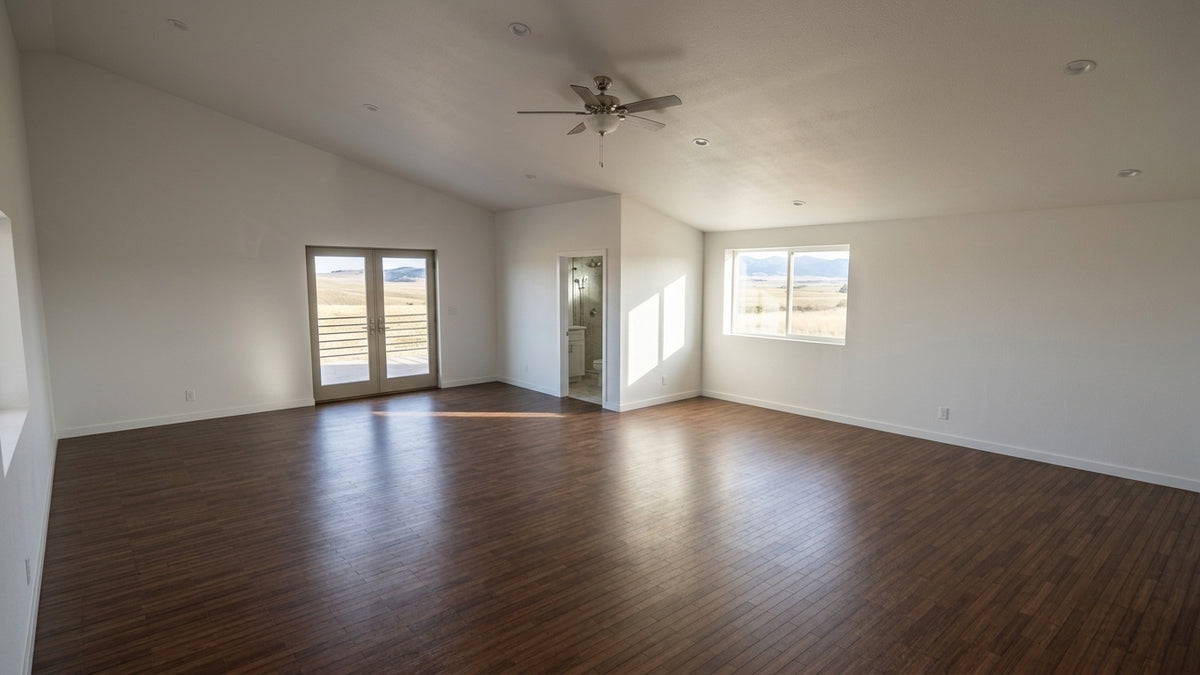

- Loft Apartment: 770 Sq Ft Studio

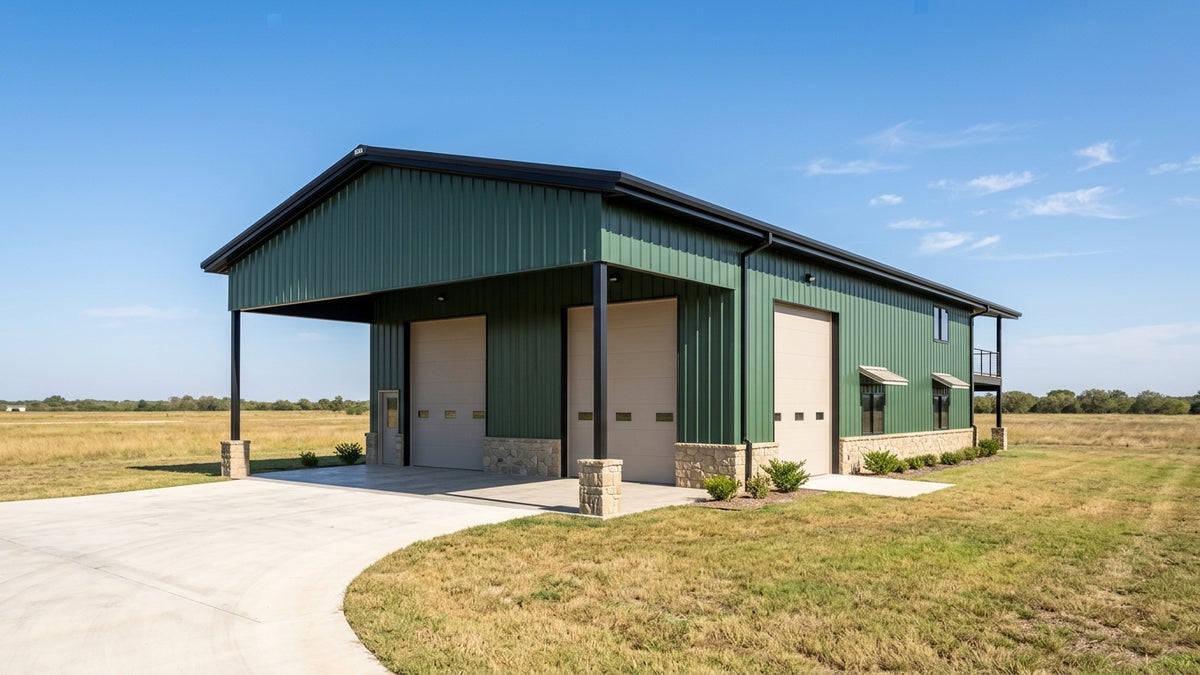

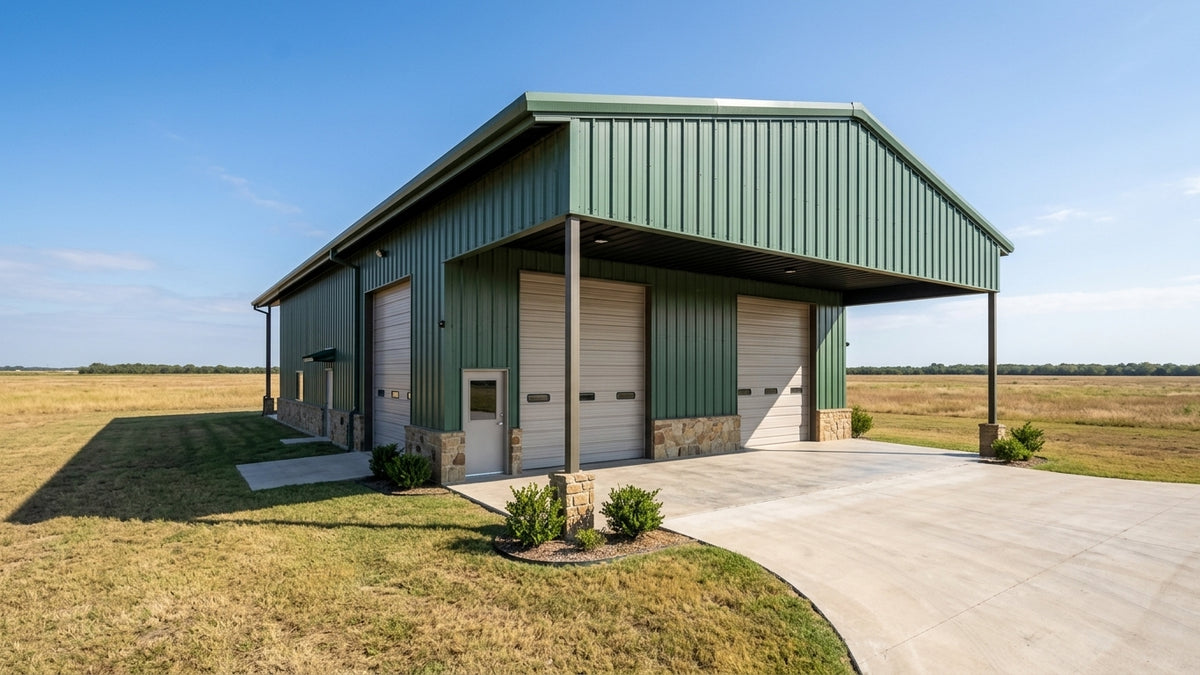

- Garage Doors: 5 Rollup Doors
- Patios: 2

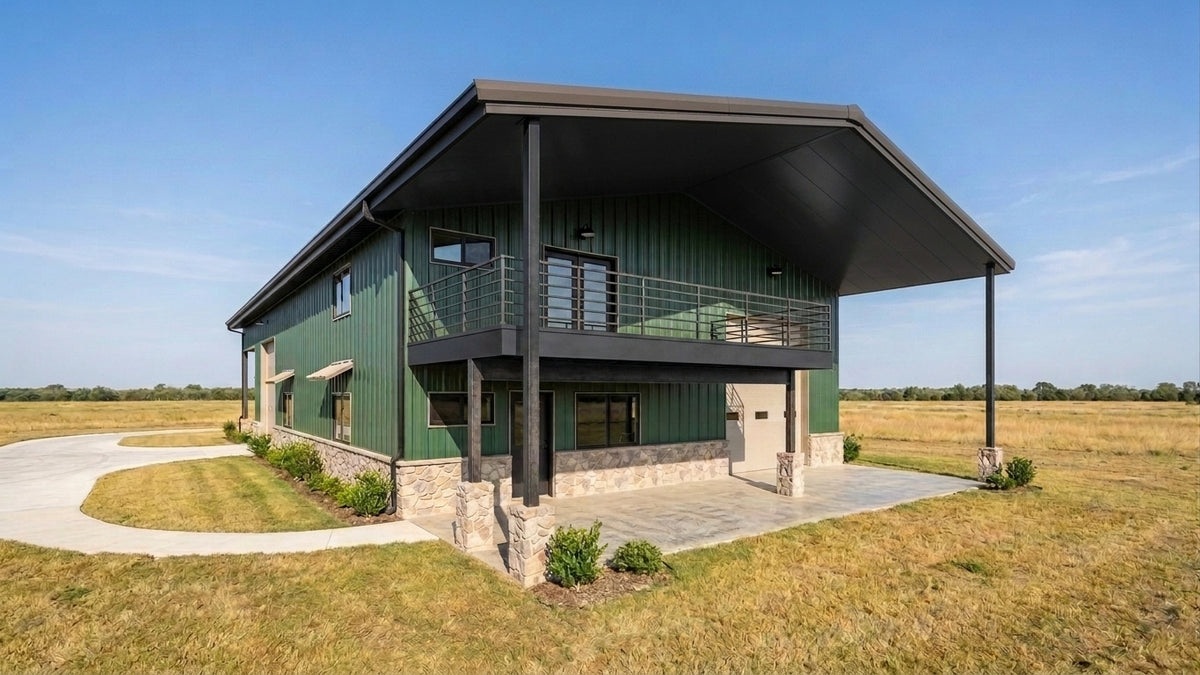

- Features: Balcony, High Ceilings for Lifts/RVs/Boats
- Framing: Structural Steel
Important Notes:
- Engineering: This is an architectural plan set. It does not include an engineer's stamp. You must have the foundation and frame engineered locally to meet your specific soil conditions and county building codes.
- Refunds: Due to the digital nature of this product, all sales are final.
CUSTOMIZATIONS can be made - reach out to us with your details and we will provide you with a quote.
Have Questions or Want to Discuss Modifications? Feel free to contact us!
