Important: All building plans must be reviewed and approved by a licensed local engineer to ensure compliance with your area's building codes and regulations before construction begins.
Built for the Ones Who Work Hard and Live Harder. 2,208 Sq Ft Living | 1,755 Sq Ft Shop | 1,200 Sq Ft Patio & Deck | 4 Bed | 3 Bath

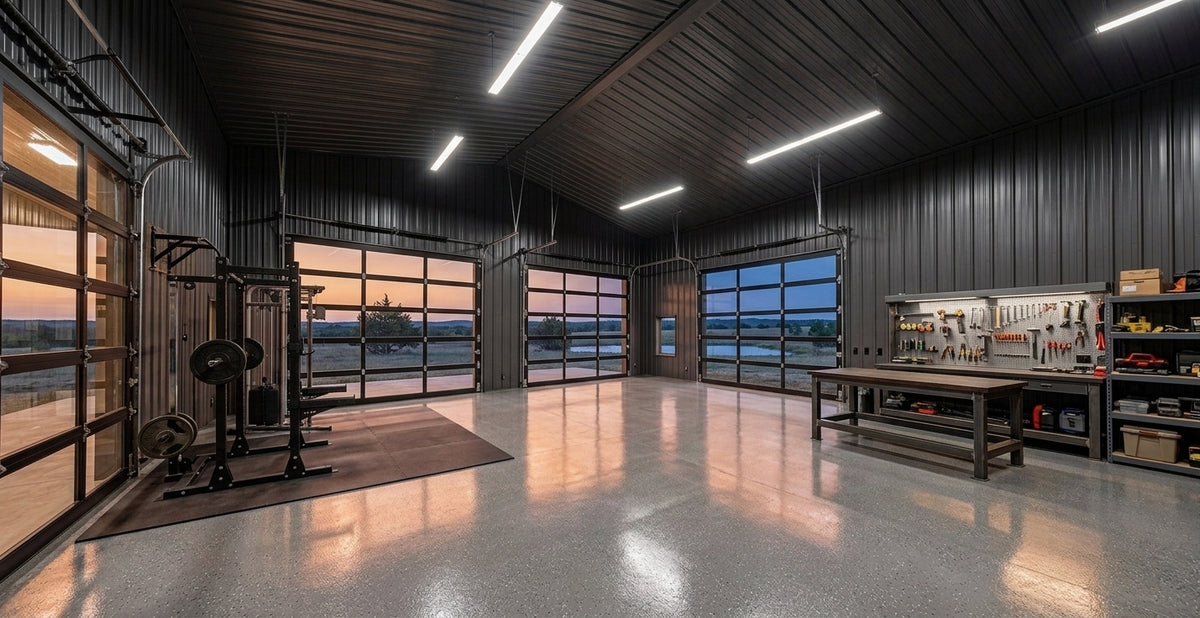

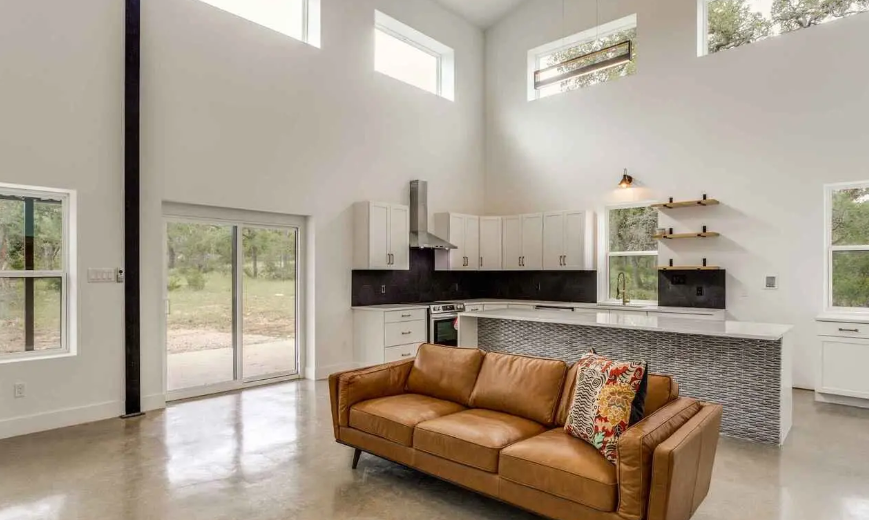

The Industry is a masterclass in balancing massive workspace with refined residential living. Designed for the serious builder, rancher, or entrepreneur who refuses to compromise, this two-story open-concept Barndominium features a soaring vaulted great room, a massive 4-bay shop, and a second-story loft. Like all of our plans, it is designed for the strength and durability of structural steel framing.
SELECT YOUR PLAN PACKAGE:
OPTION 1: THE PLANNING STUDY SET ($99) Best for: Visualizing the home on your lot, checking land feasibility, and preliminary HOA or builder approval.
- What You Get: Dimensioned Floor Plans (Room Sizes), 4 Exterior Elevation Views (Heights), and 3D Dollhouse Visualization sheets.
- Protection: Stamped "Not For Construction." Does not include technical data for permitting.
- BUILDER'S BONUS: Includes a $100 Credit Voucher valid toward the full Construction Set.
OPTION 2: THE COMPLETE CONSTRUCTION SET ($925) Best for: Builders ready to break ground, pull permits, and hire trades.
- What You Get: The full architectural license and the comprehensive technical blueprint set detailed below.
- License: Includes a license to construct ONE structure.
What's Included in the Complete Blueprint Package:
- ✔ Cover Page: Stunning exterior renders.

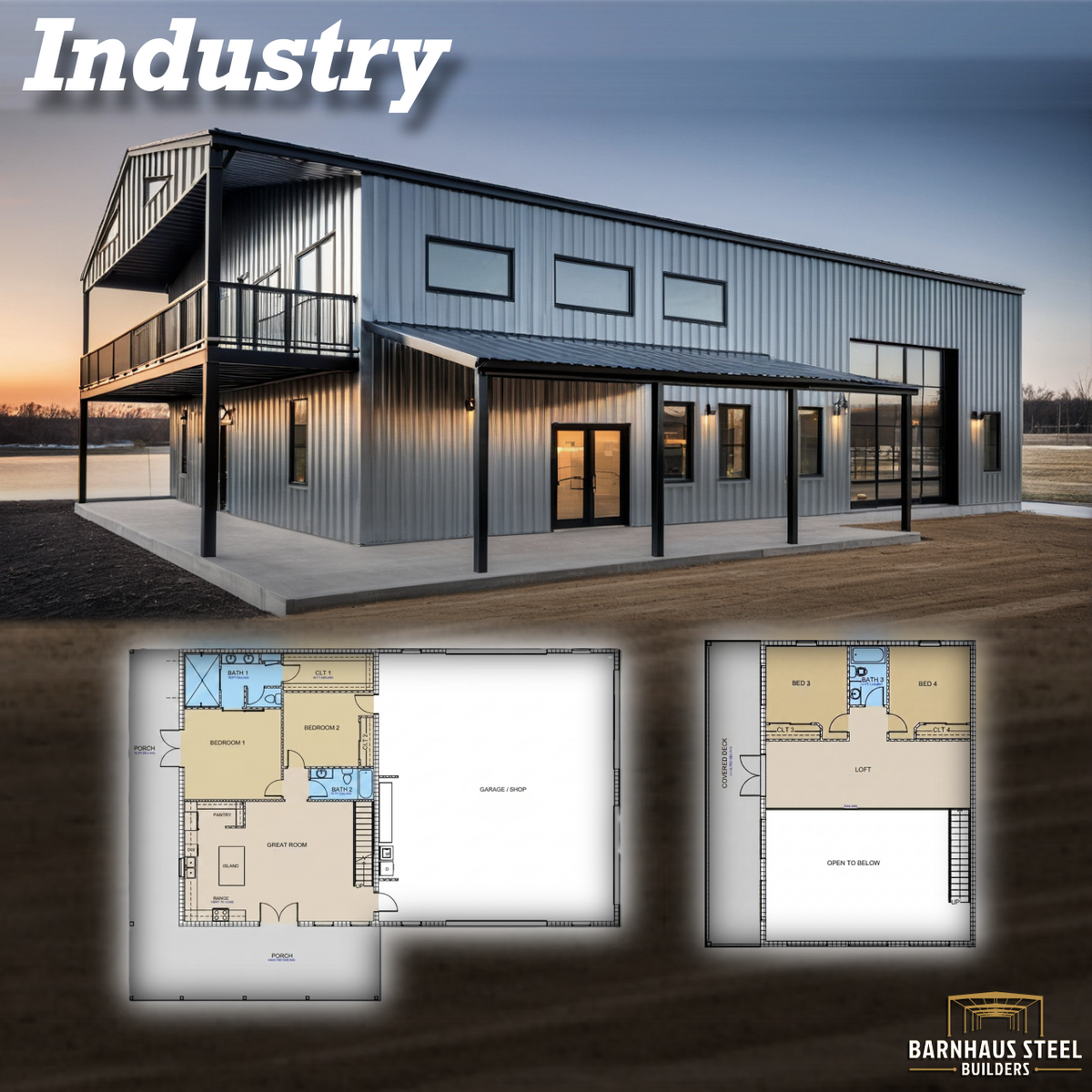

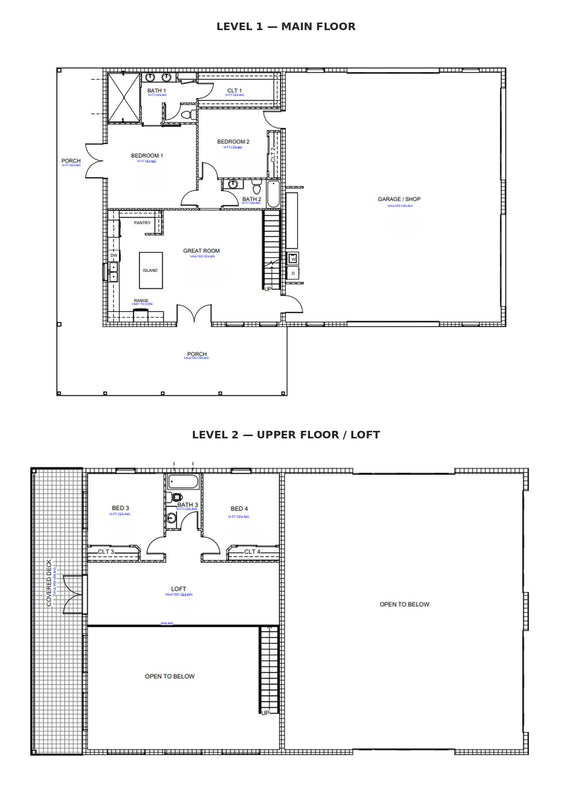

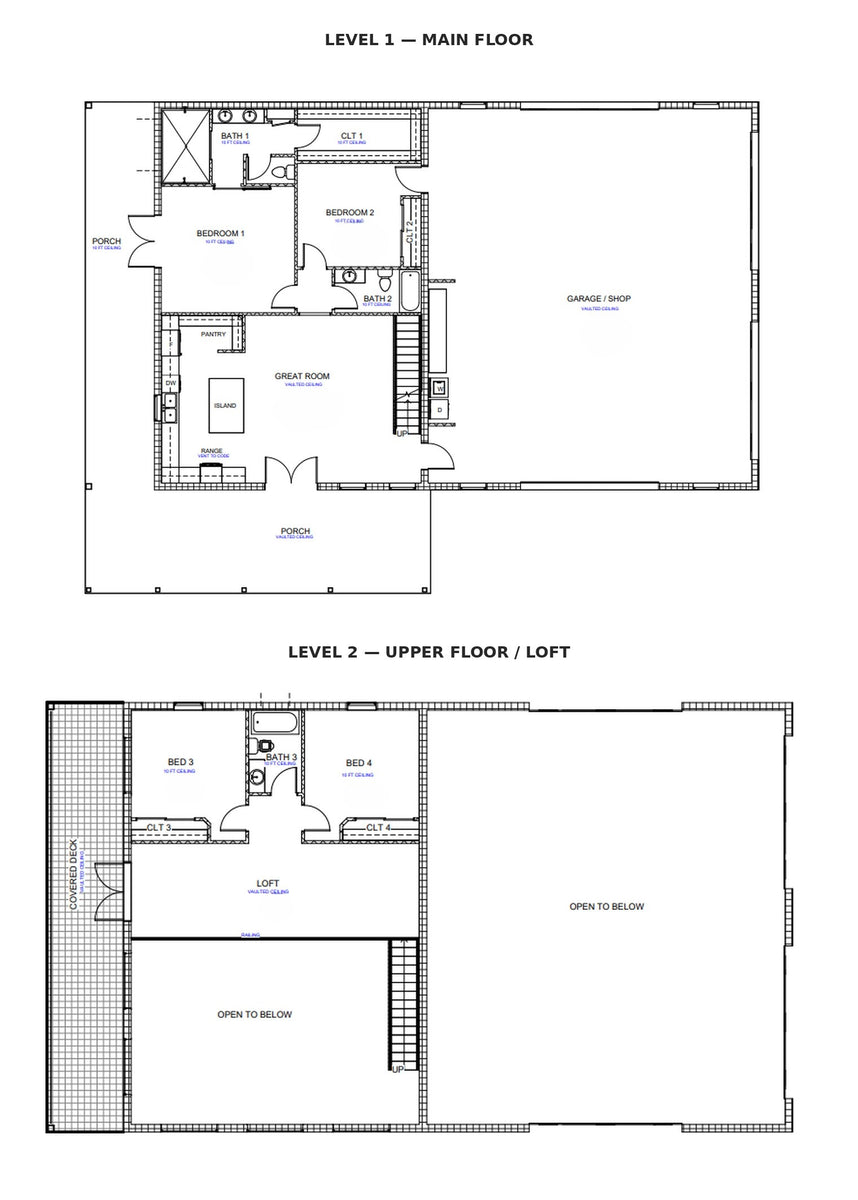

- ✔ Architectural Floor Plans (Levels 1 & 2): Detailed layouts with all room dimensions.
- ✔ Dimension Plan: Precision measurements for framing layout.
- ✔ Exterior Elevations: Detailed views of all four sides.
- ✔ 3D Views & Cut Views: Better visualization of the structural flow.
- ✔ Roof Plan & Wall Sections: Key structural details.
- ✔ Electrical Plan: Schematic layouts for lighting and outlets.
- ✔ Door & Window Schedule: Easy ordering for your suppliers.
Key Specifications:
- Living Area: 2,208 Sq Ft (2-Story)
- Garage / Shop: 1,755 Sq Ft
- Covered Patio & Deck: 1,200 Sq Ft
- Bedrooms: 4
- Bathrooms: 3
- Ceiling Heights: 10 Ft Ceilings Throughout, Vaulted Great Room & Loft
- Shop Specs: Four massive 16x14 overhead doors
- Framing: Structural Steel (Designed for I-beam or square metal posts)
Important Notes:
- Engineering: This is an architectural plan set. It does not include an engineer's stamp. You must have the foundation and frame engineered locally to meet your specific soil conditions and county/city building codes.
- Refunds: Due to the digital nature of this product, all sales are final.
CUSTOMIZATIONS can be made - reach out to us with your details and we will provide you with a quote.
Have Questions or Want to Discuss Modifications? Feel free to contact us!
